Goldstar Solar Water Heater is a high-quality, eco-friendly, and energy-efficient solution for heating water using solar power.
It is designed to absorb solar energy through a flat plate collector, which heats the water that flows through it. The heated water is then stored in an insulated tank, ensuring that you have access to hot water whenever you need it.
Goldstar Solar Water Heaters are available in a variety of sizes and models to meet the specific hot water needs of homes, hotels, hospitals, and other commercial establishments. They are made from high-grade materials that are durable and long-lasting and come with a warranty to ensure customer satisfaction.
By choosing Goldstar Solar Water Heater, you can reduce your dependence on traditional water heaters that consume electricity or gas and lower your carbon footprint. This not only helps in protecting the environment but also saves you money on your electricity bills. Overall, Goldstar Solar Water Heater is a smart, reliable, and sustainable choice for heating water in an eco-friendly and efficient way.

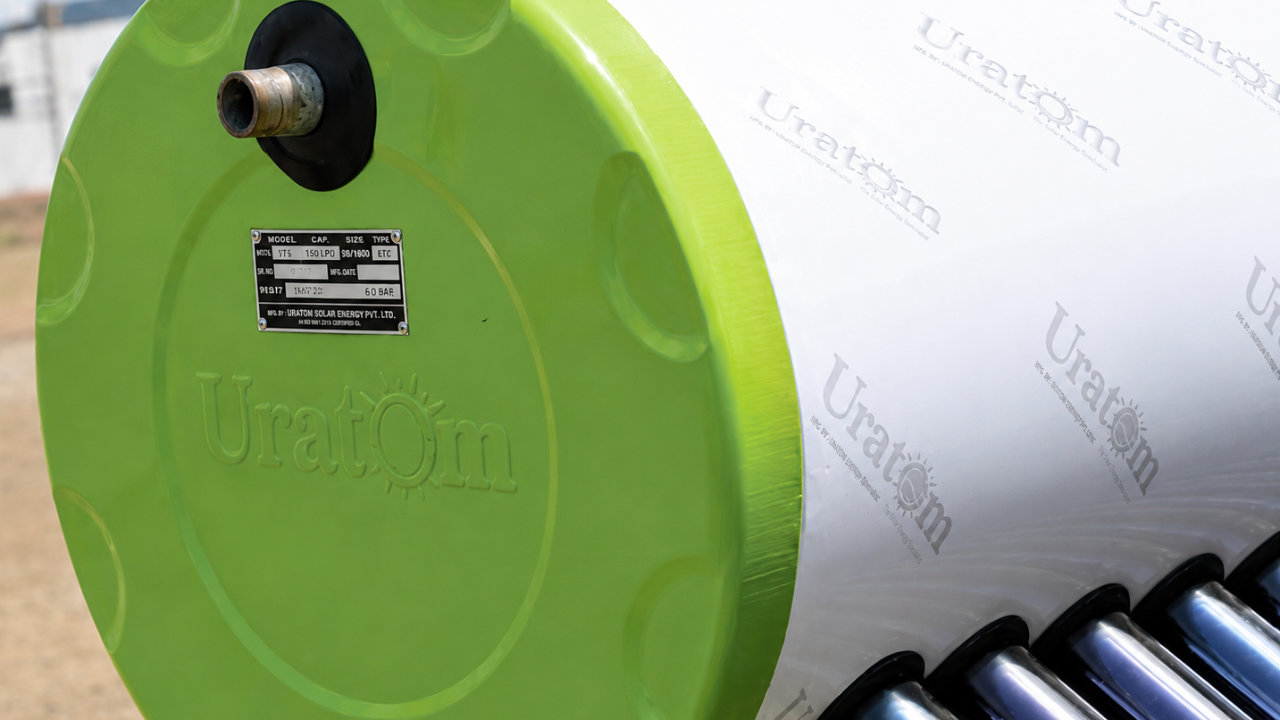

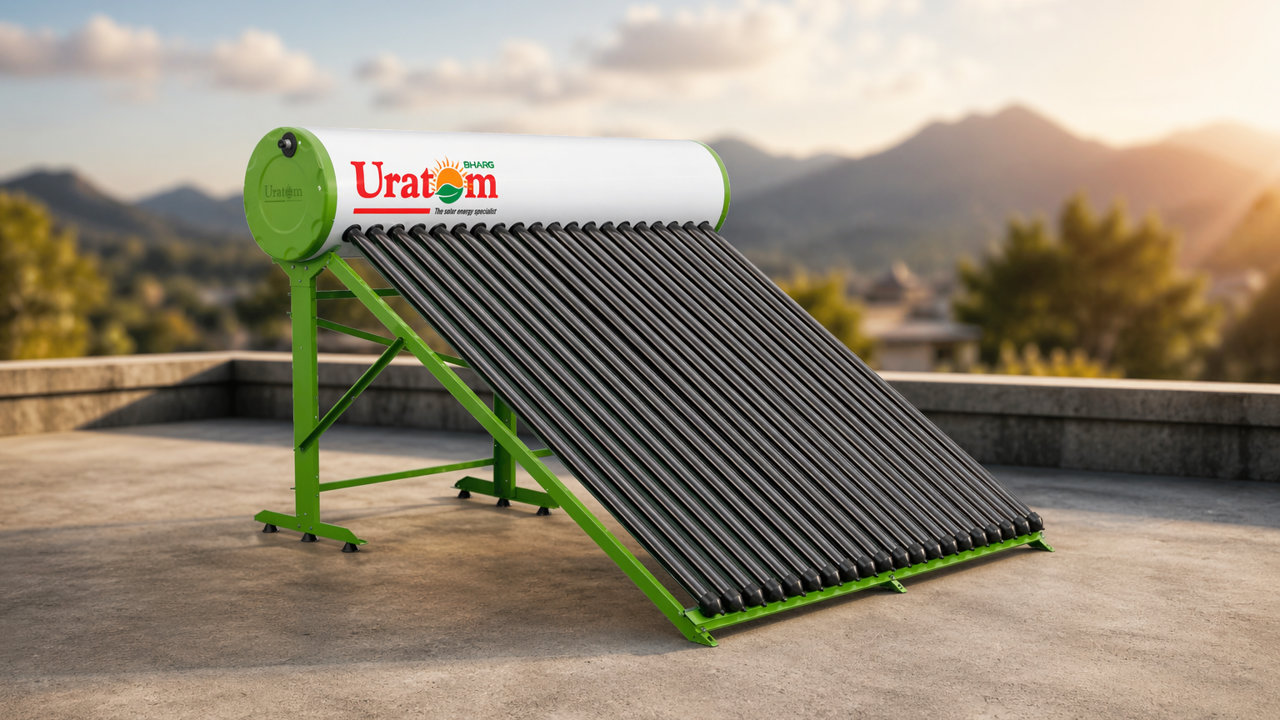

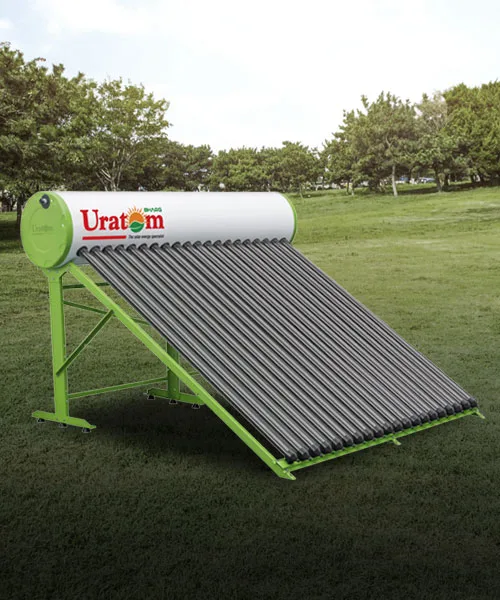

Goladstar’s Bharg solar water heater model is an advanced and extremely efficient system that utilizes evacuated glass tubes to capture and transfer solar energy. These tubes have two layers of glass with a vacuum in between, creating an insulated space that reduces heat loss. The heated water is then collected in a storage tank, where it can be used for various purposes.
Thanks to the evacuated glass tube technology, the Bharg model is highly efficient and can generate hot water even in low sunlight conditions. Additionally, the model is ideal for use in areas with colder weather conditions due to the vacuum layer in the tubes, which prevents heat loss and maintains the water temperature for a longer period of time.
| Material | 1.6mm Borosilicate 3.3 Glass |
| Dimension | O.D. 47mm / 58mm / 70mm I.D. 37mm / 47mm / 54mm Length: 1500mm / 1800mm / 2100mm |

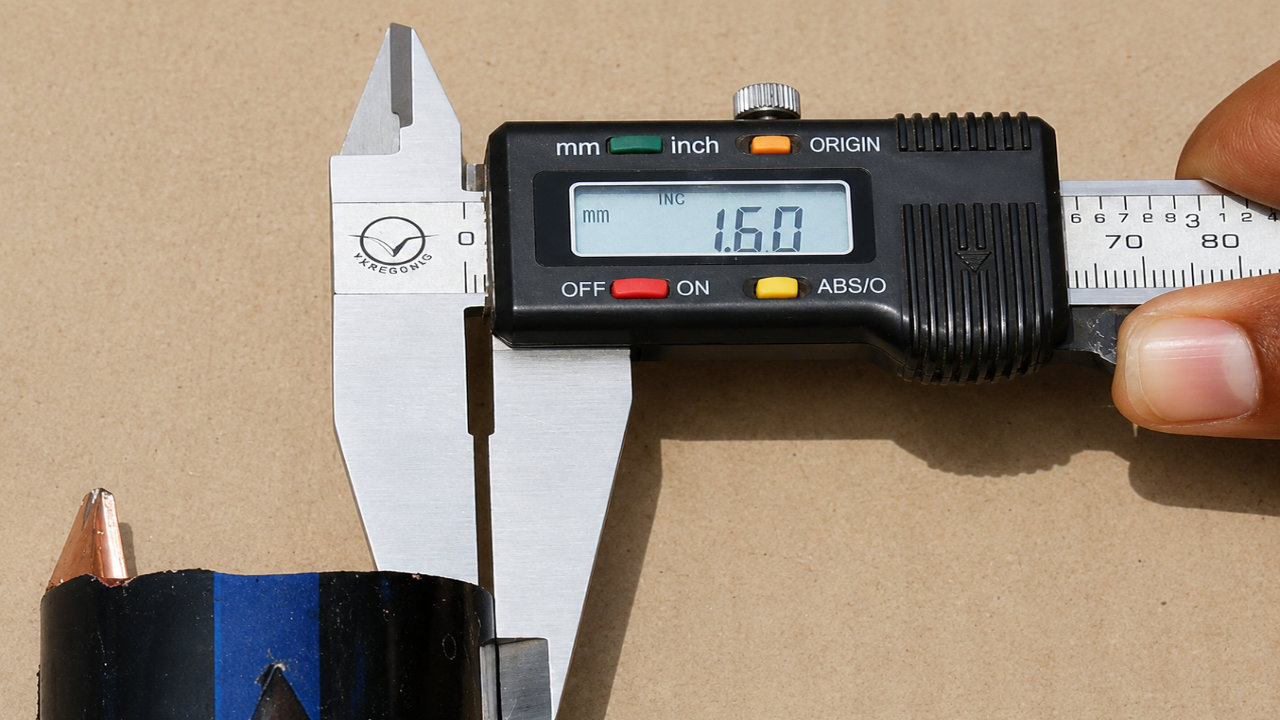

| Glass Thickness | 1.6mm |
| Absorptive Coating | CU – AL – N / SS (Three Layer) |
| Absorptance | 92% (Am1.5) |
| Amission | <8% (80° C) |
| Vacuum | P < 5X10-3 PA |
| Stagnation Temperature | 200° C |
| Heat Loss | <0.8w / Sq. mtr. |
| Maximum Strength | 0.8 Mpa |

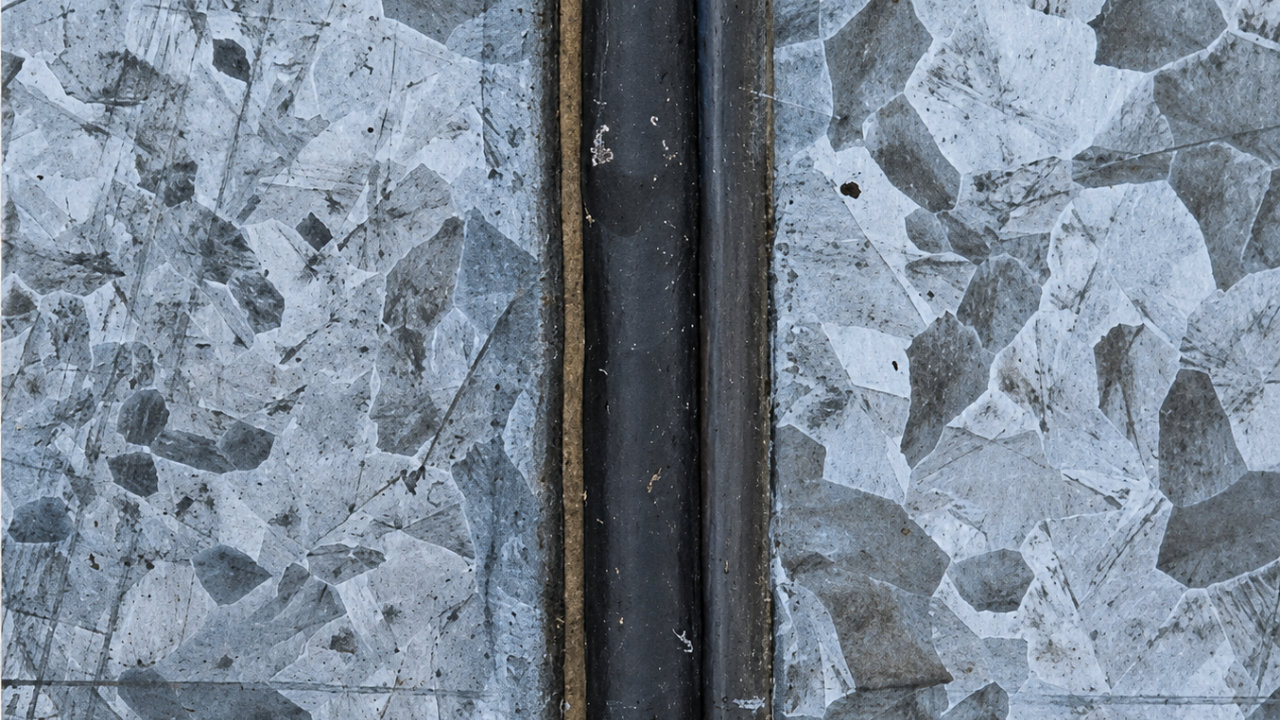

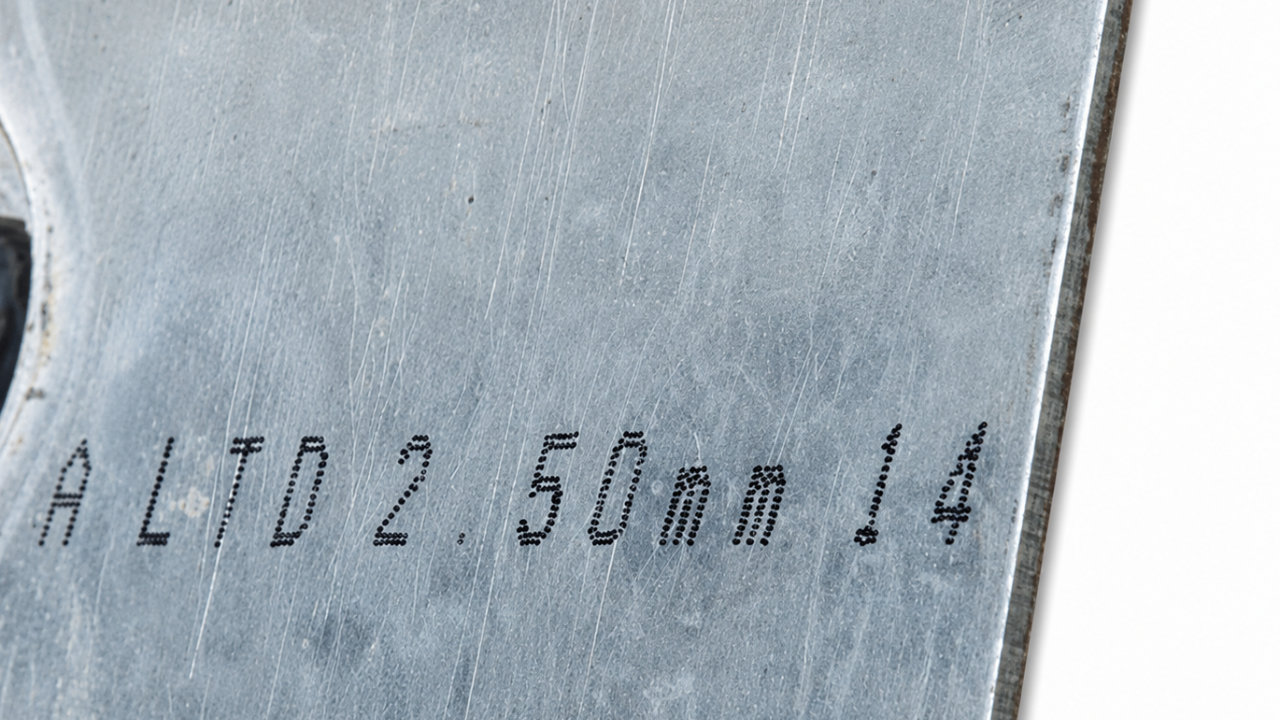

| Inner tank | 2mm Galvanized Iron (G.I) TIG & MIG Welded |
| Inner Coating | High-Grade Anti-corrosive Coating |
| Outer Cladding | 0.45 mm Galvanized Iron (G.I) with P P Powder Coating |

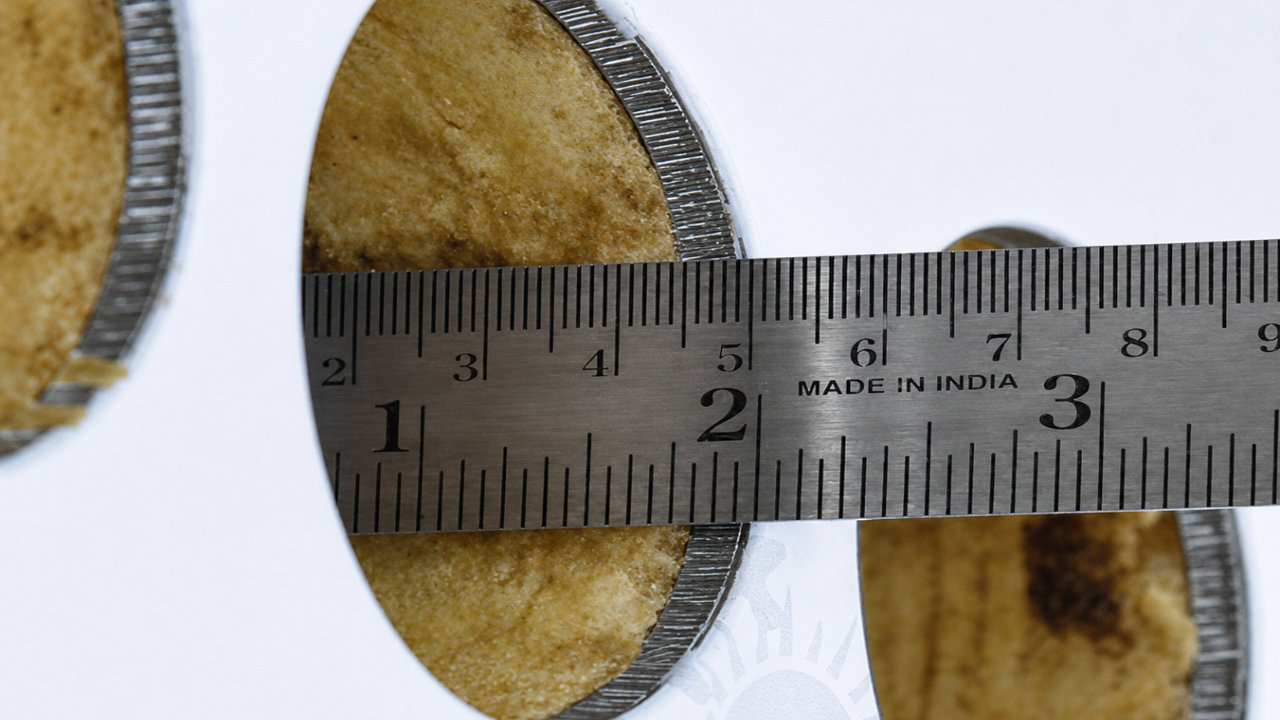

| Insulation | 50 mm PUF (38 kg / mt3 density) |

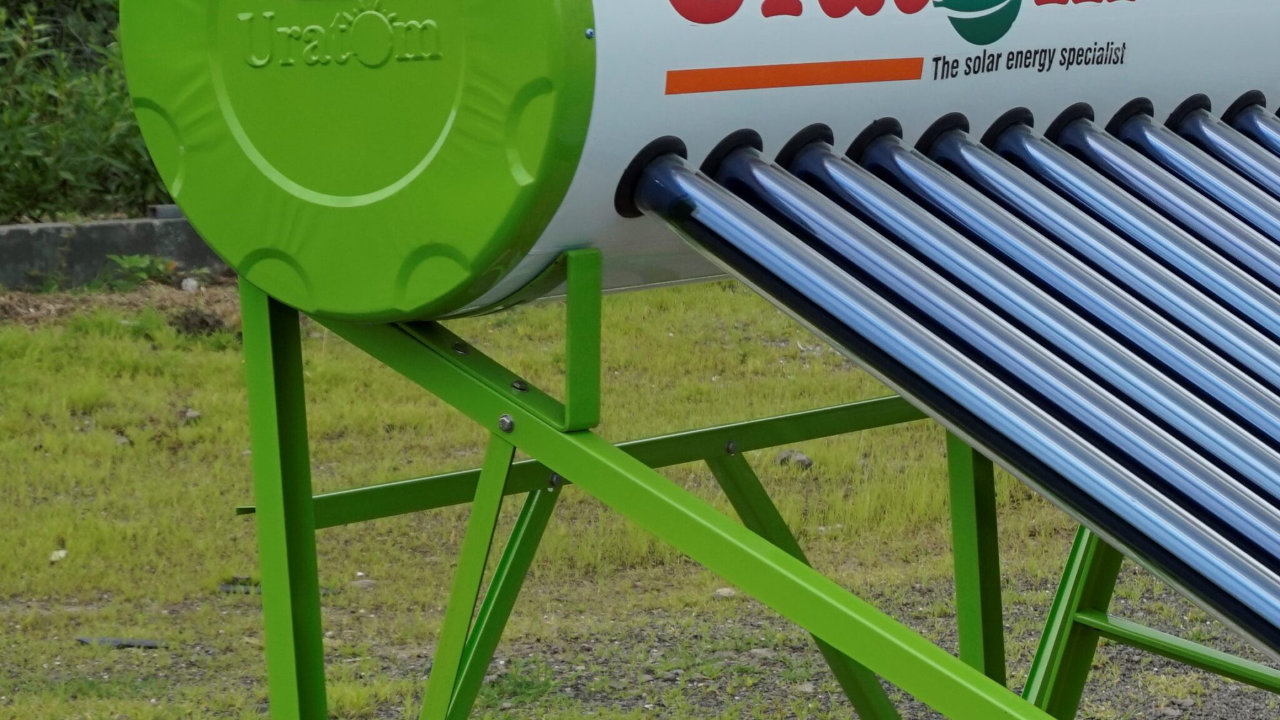

| Stand | 1.6 mm (G.I) with P P Powder Coating Or 30 x 30 x 3 mm M.S with P P Powder Coating |
| Connections | 1″ |
| Electric Backup Provision | 1.25″ |
| Traditional Energy | 150 Litres | 300 Litres | 500 Litres |
| 2 kW electric heater | 625/-* | 1250/-* | 2080/-* |
| Gas | 523/-* | 1046/-* | 1744/-* |
| *Price of electric unit Rs. 4.5 + tax calculation is shown *Price of gas Rs. 40/kg *In Calculation, the temperature of heated water is kept at 50 °C | |||

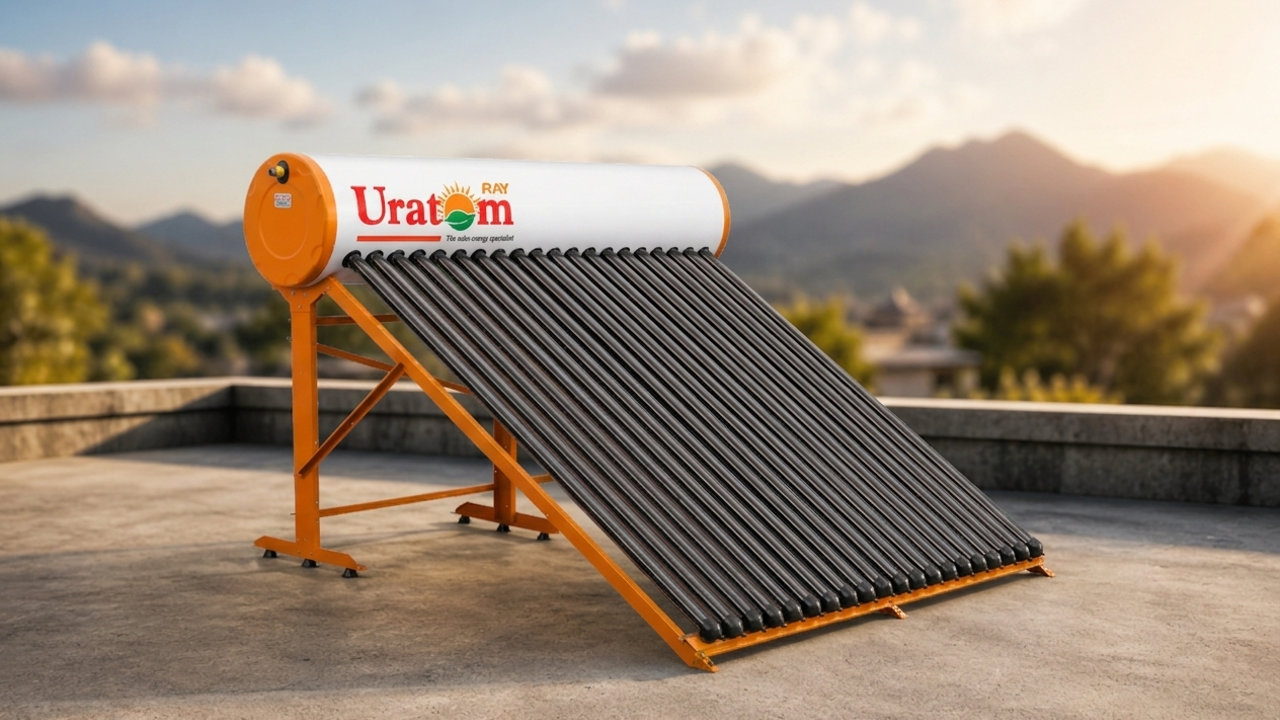

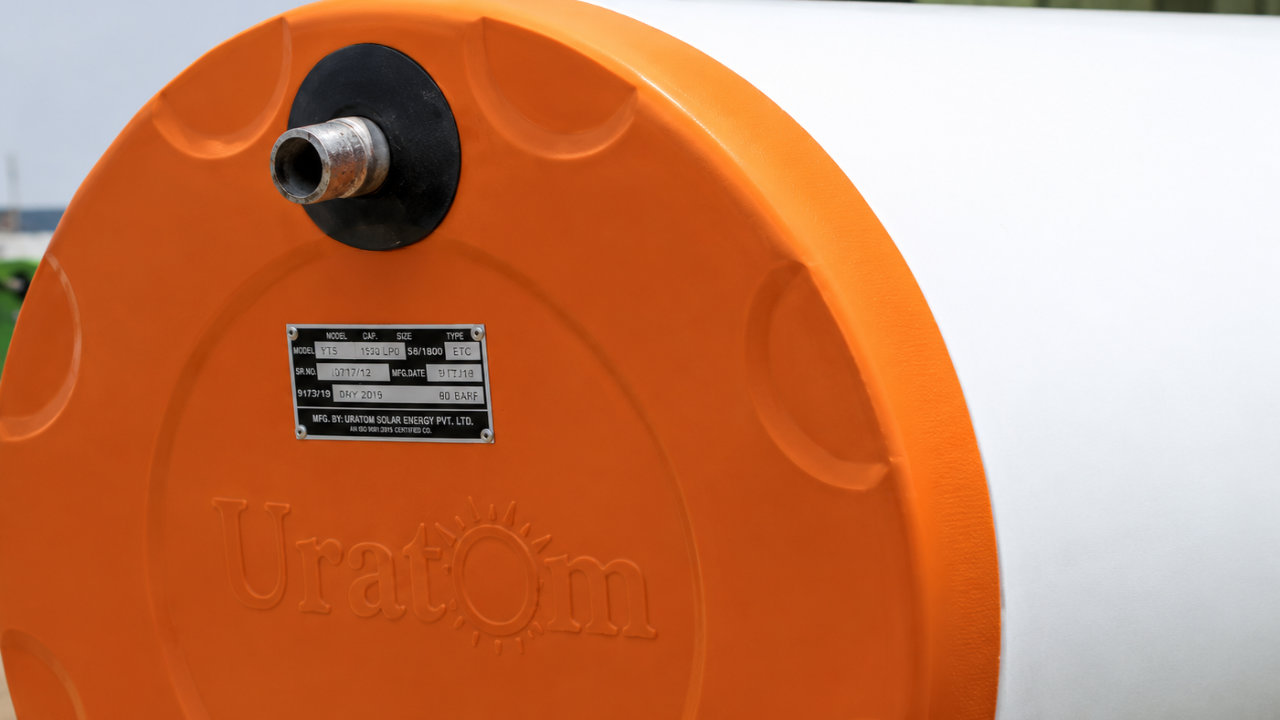

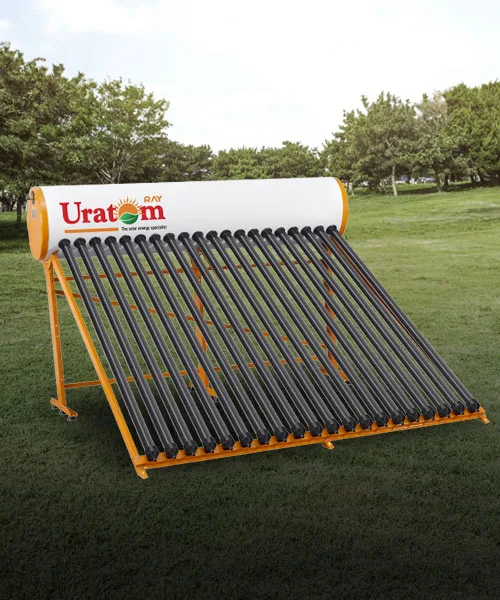

The Goldstar RAY Model is specifically created as an economical and budget-friendly option to cater to hot water requirements through solar water heating. Among its peers, RAY is considered the most inexpensive solar water heater available.
Despite its affordability, RAY has a tank that is optimized for corrosion resistance. The tank is constructed with high-grade GI steel to ensure durability over an extended period of time. Additionally, the outer cover is coated with premier powder on GI made from Poly Propylene resin, which safeguards against UV rays and corrosion and ultimately results in a longer lifespan with no maintenance required.

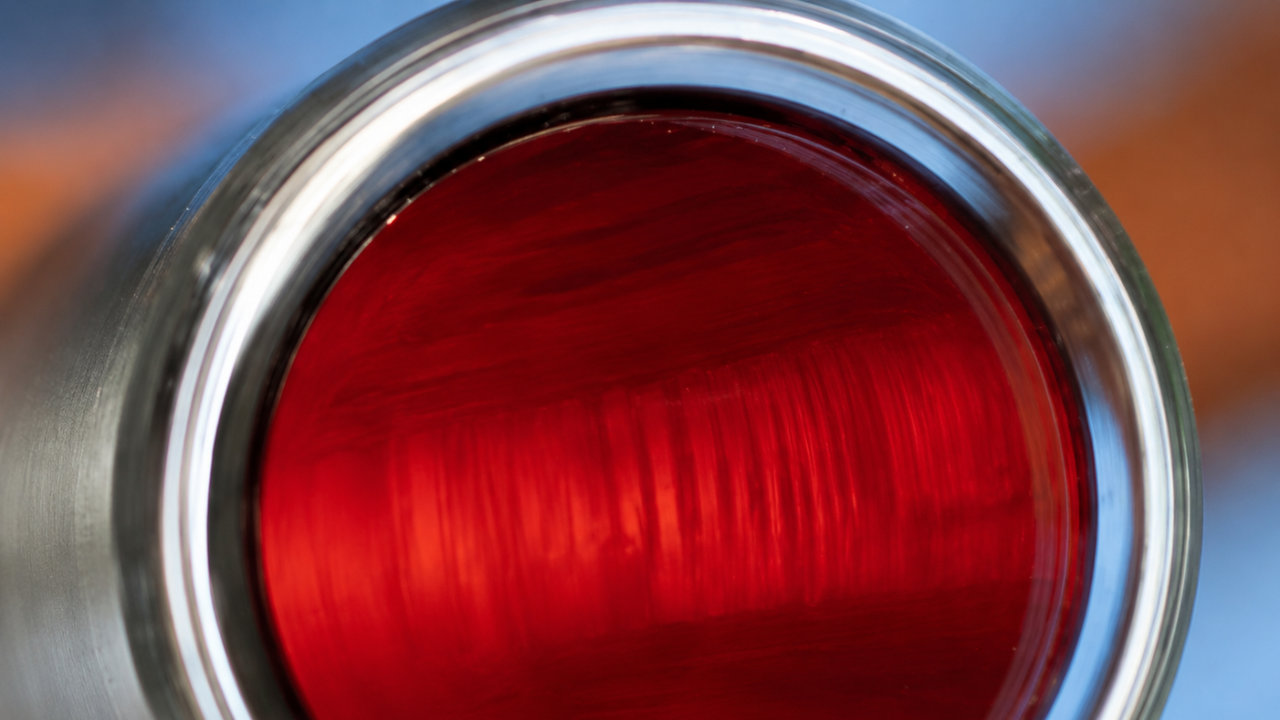

| Material | 1.6mm Borosilicate 3.3 Glass |
| Dimension | O.D. 47mm / 58mm / 70mm I.D. 37mm / 47mm / 54mm Length: 1500mm / 1800mm / 2100mm |
| Glass Thickness | 1.6mm |
| Absorptive Coating | CU – AL – N / SS (Three Layer) |
| Absorptance | 92% (Am1.5) |
| Amission | <8% (80° C) |
| Vacuum | P < 5X10-3 PA |
| Stagnation Temperature | 200° C |
| Heat Loss | <0.8w / Sq. mtr. |
| Maximum Strength | 0.8 Mpa |

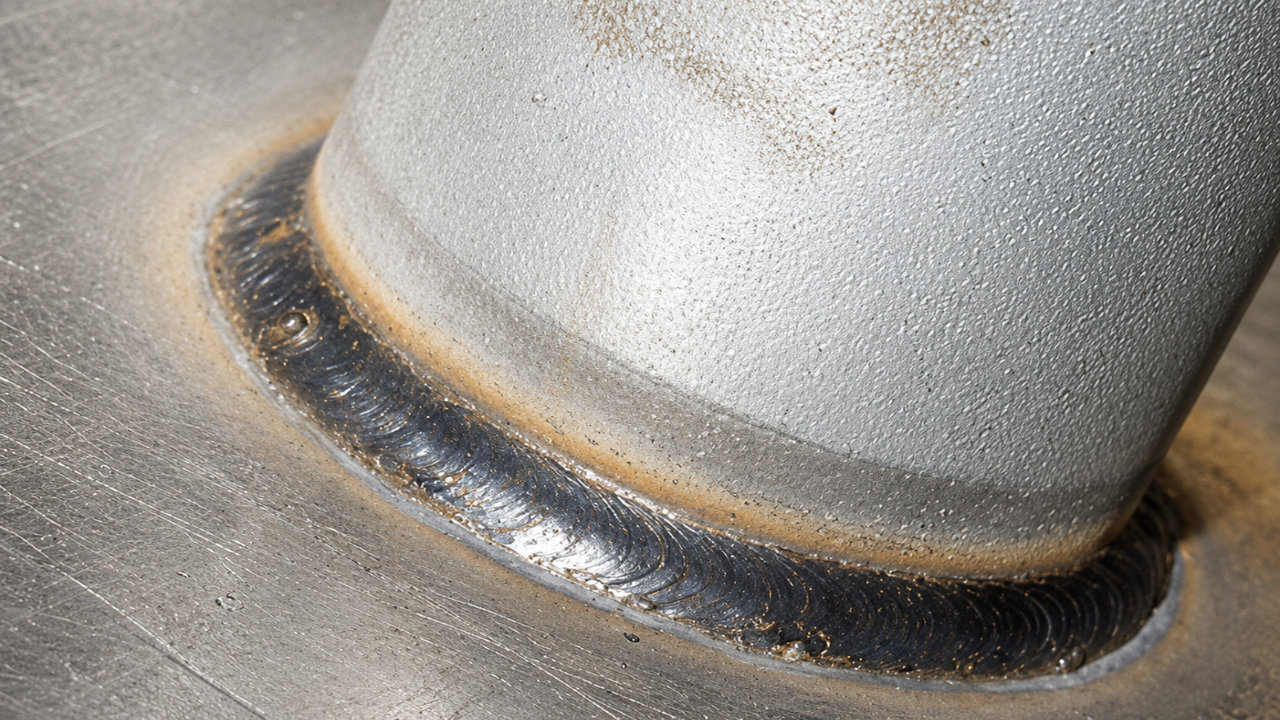

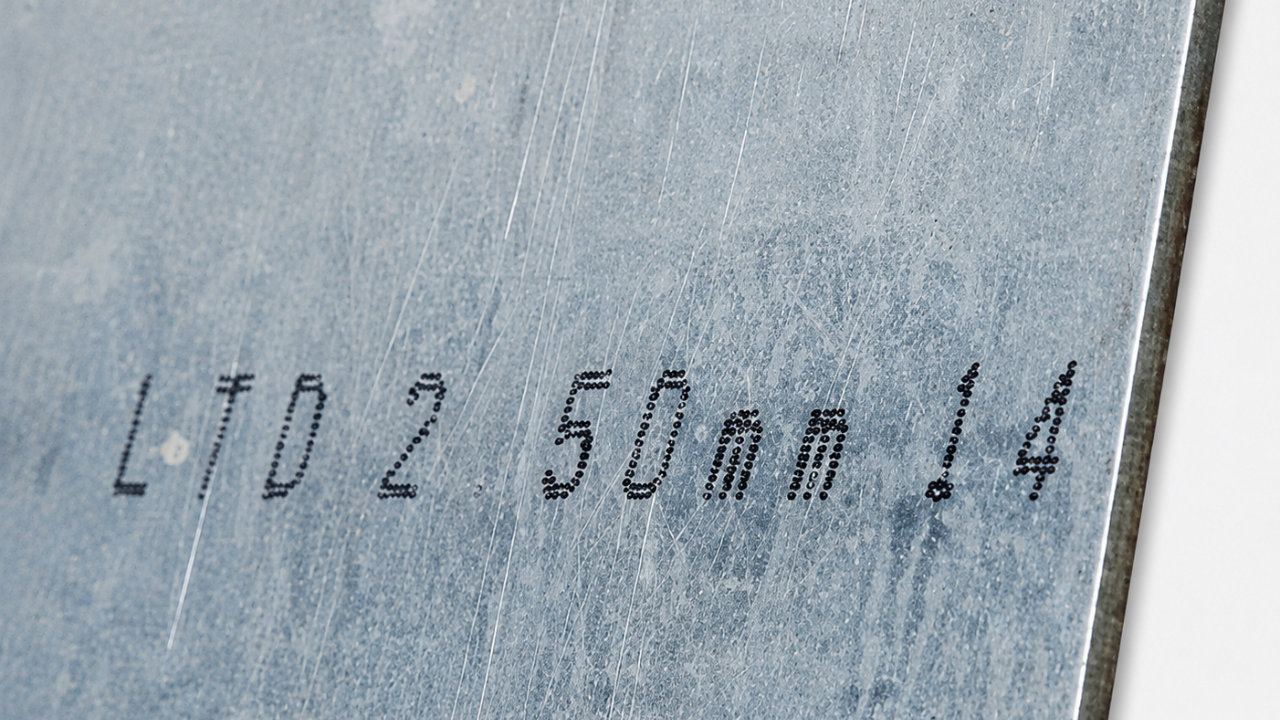

| Inner tank | 2.5 mm Galvanized Iron (G.I) TIG & MIG Welded |
| Outer Cladding | 0.45 mm Galvanized Iron (G.I) with P P Powder Coating |
| Insulation | 50 mm PUF (38 kg / mt3 density) |

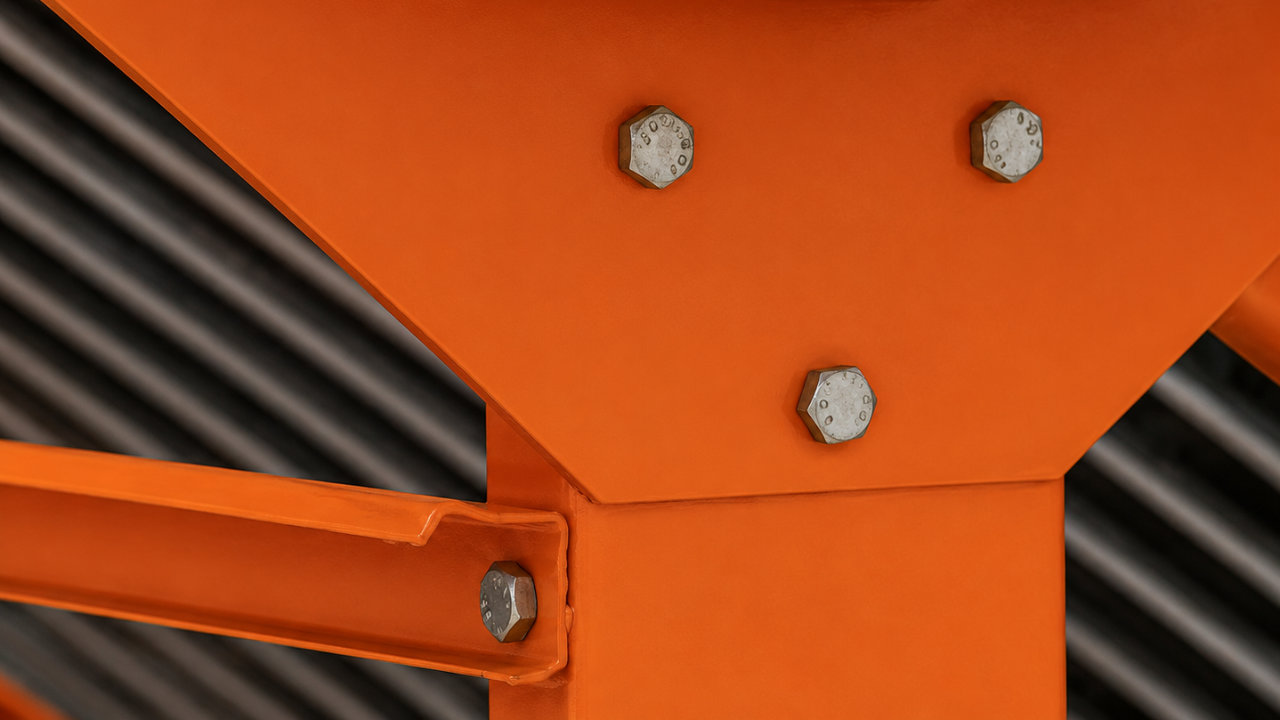

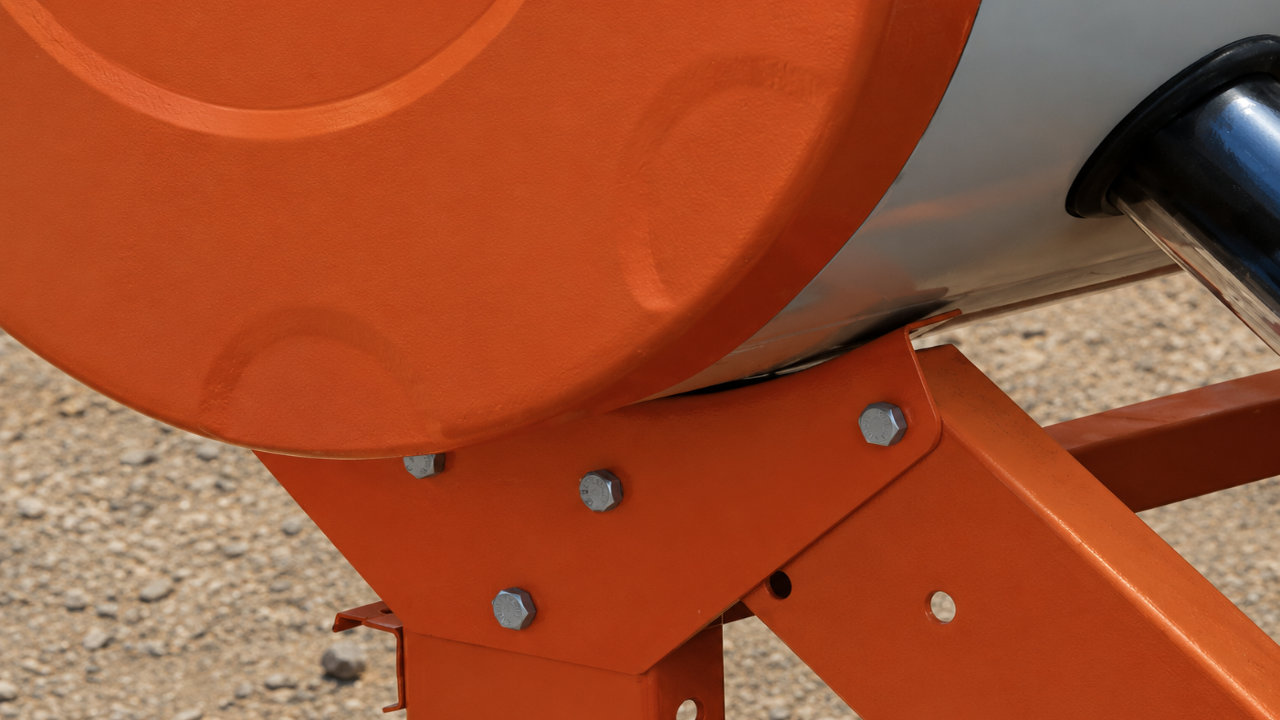

| Stand | 1.6 mm (G.I) with P P Powder Coating Or 30 x 30 x 3 mm M.S with P P Powder Coating |
| Connections | 1″ |
| Electric Backup Provision | 1.25″ |
| Traditional Energy | 150 Litres | 300 Litres | 500 Litres |
| 2 kW electric heater | 625/-* | 1250/-* | 2080/-* |
| Gas | 523/-* | 1046/-* | 1744/-* |
| *Price of electric unit Rs. 4.5 + tax calculation is shown *Price of gas Rs. 40/kg *In Calculation, the temperature of heated water is kept at 50 °C | |||

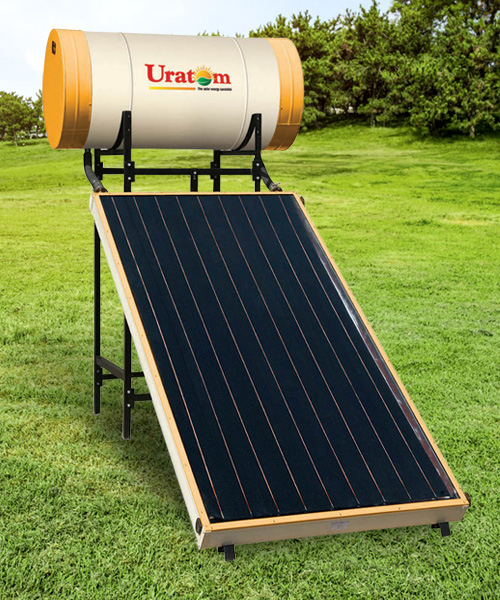

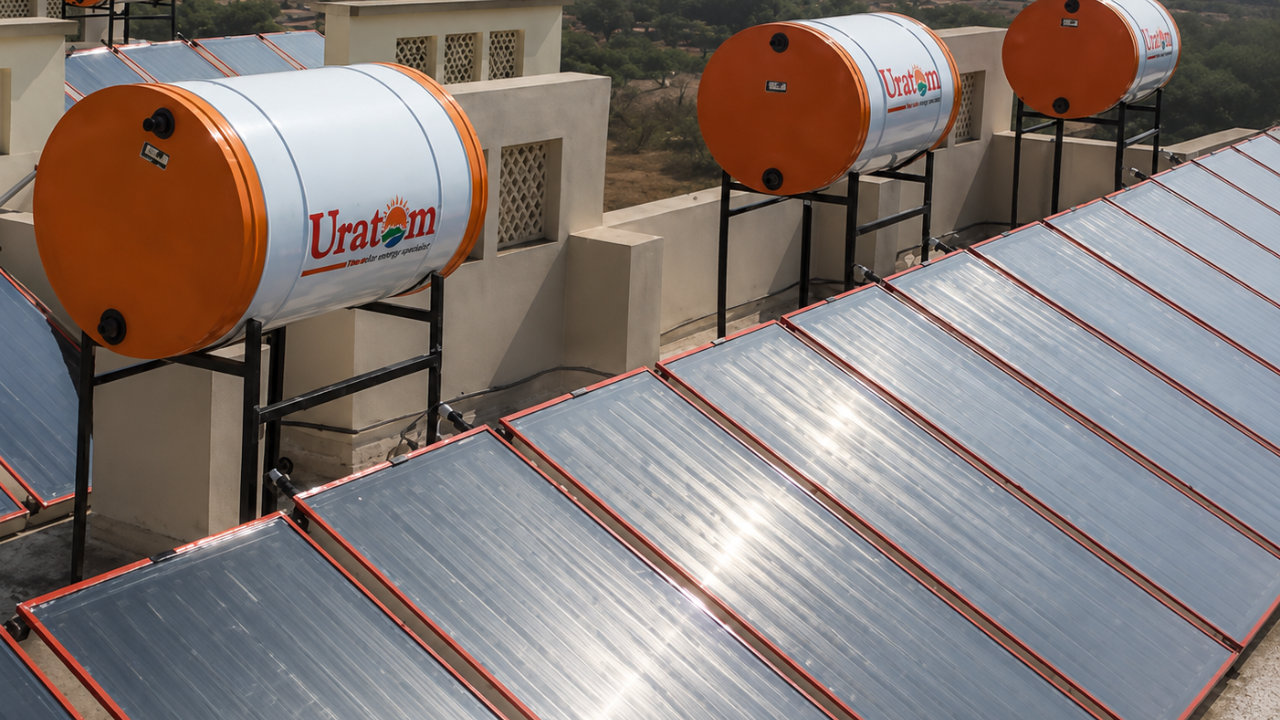

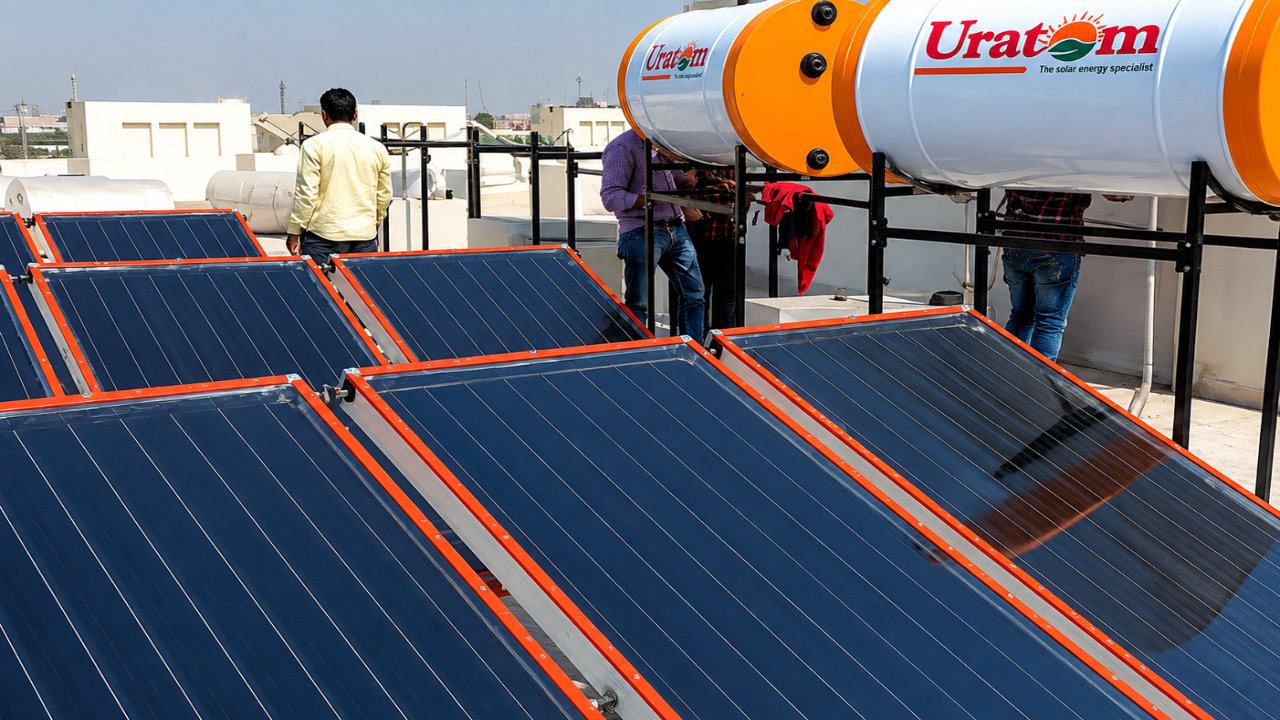

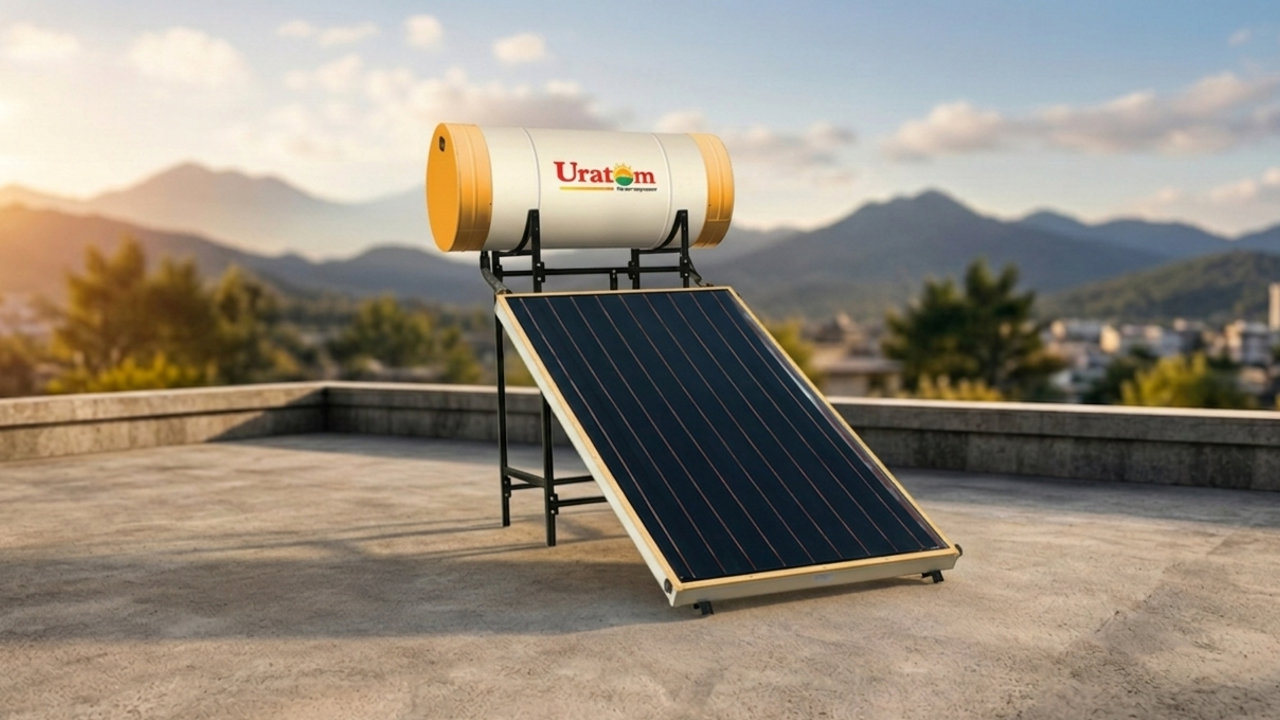

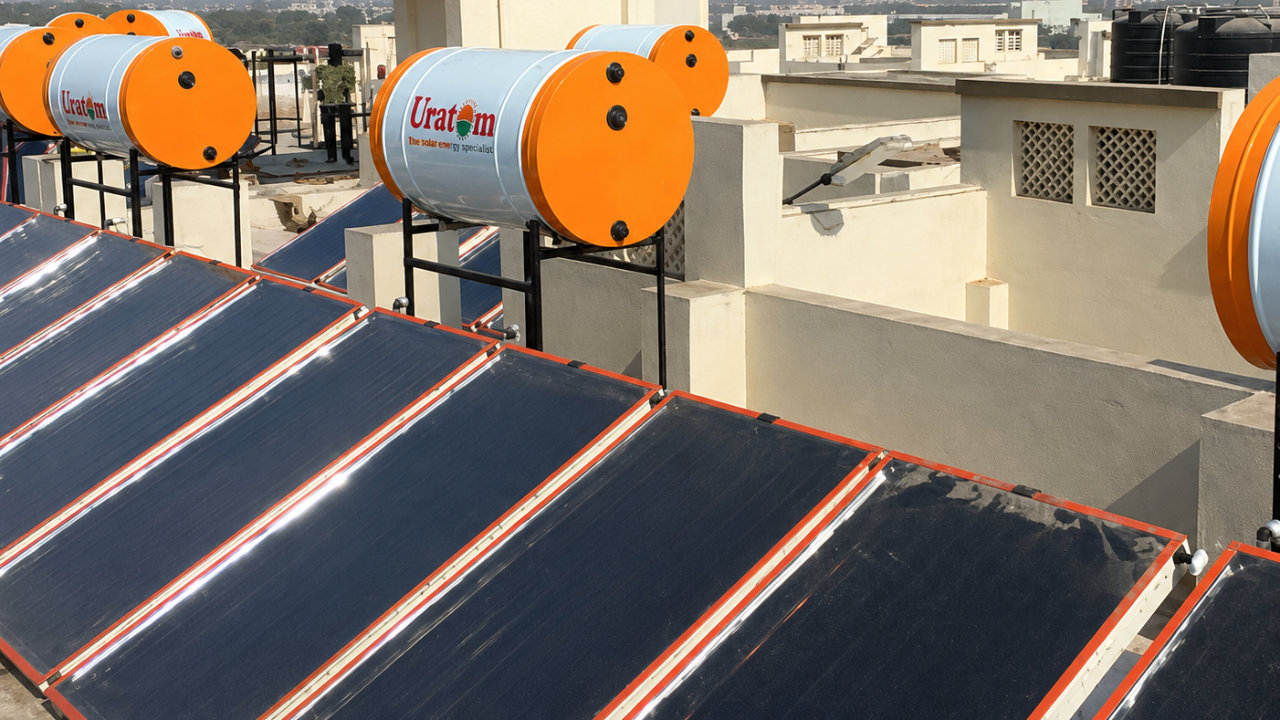

A Flat Plate Collector solar water heater is a type of solar water heating system that utilizes a flat, rectangular collector plate to capture and transfer solar energy. The plate is typically made of copper or aluminum and is coated with a special material that absorbs sunlight and converts it into heat. A network of pipes, also made of copper or aluminum, runs through the plate, and a heat transfer fluid, typically water, is circulated through the pipes.
The heated water is then stored in an insulated storage tank until it’s needed. Flat Plate Collector solar water heaters are highly efficient and can provide hot water for various applications, including residential, commercial, and industrial settings. They’re ideal for use in areas with moderate to high levels of sunlight and are suitable for use in areas with mild to moderately cold weather conditions.
| Capacity | Equal to System Capacity |
| Material | SS 304 Non-magnetic Stainless Steel or Epoxy Coated G.I. |
| Welding | TIG Welding (Argon inert gas welding) for SS304. |
| Thickness | Suitable for Tank Capacity. |
| Insulation | Glass Wool Sheets 100mm Thick. |
| Cladding | PP Powder Coated G.I. sheets / Aluminum Cladding. |
| Back-up | Electrical Coil of 2 KW (Optional). |
| Pressure rating | 0.5 Kg/cm. 2 for Normal Systems; 3.5 – 5 kg/cm. 2 for Pressurized Systems. |
| Brand | “Goldstar” |
| Overall Size | 2030mm X 1030mm X 95mm. |
| No. of Fins per Collector | 9 |
| Absorber Area | Approx. 2.06 sq. mt. |
| Absorber Coating | NALSUN Solar selective coating on Copper (Black Chrome on Copper with or without Nickel Undercoating). |
| Absorptivity | 0.92 – 0.96 |
| Emissivity | 0.10 – 0.15 |
| Temperature Tolerance of Coating | More than 200° C |
| Absorber Sheet (Copper) | 0.12mm Thick X 1900mm L X 155mm W |
| Riser (Copper Tube) | O.D. 12.7mm X 0.5mm Thick X 1922mm L |
| Bonding Between Riser Tube and Absorber | Ultrasonic Welding. |
| Bonding Between Riser Tube and Heater | Copper Brazing |
| Hydraulic Test Pressure | 5 kg / sq. cm. |
| Rated Pressure | 2.5 kg / sq. cm. |
| End Connections | Brass Flared Flanges of Threaded 1″ BSP |
| Collector Box | Specially Extruded Aluminum Section |
| Box-back Sheet Joint | Pop Riveted |
| Box-corner Joints | Screwed |
| Back Sheet | Aluminum Sheet 0.6 / 0.7mm Thick |
| Reflector | Aluminium Foil 0.02 / 0.05mm Thick |
| Glazing | Toughened & Tempered Glass 4mm Thick – Free From Bubbles and Scratches. |
| Transmittance | >0.82 |
| Sealing | Silicone Sealant |
| Back Insulation | Resin Bonded Rockwool 50mm Thick. R=1.67 M2°C / W, K=0.052 W / M2. k |
| Side Insulation | Resin Bonded Rockwool 25mm Thick |
| Grommets & Gaskets | EPDM Rubber |
| Thermal Performance | FRUL ≤ 6 W / M2°C / W, FR (T&) ≥0.65 |
| Traditional Energy | 150 litre (3-4 Members) | 300 litre (9-10 Members) | 500 litre (15-16 Members) |
|---|---|---|---|
| 2kw electric heater | Rs. 625/-* | Rs. 1250/-* | Rs. 2080/-* |
| Natural Gas | Rs. 523/-* | Rs. 1744/-* | 500 litre (15-16 Members) |
| *Price of electric unit Rs. 4.5 + tax calculation is shown *Price of gas Rs. 40/ kg. *In calculation, cold water temperature kept at 25°C & Heated temperature at 50°C | |||

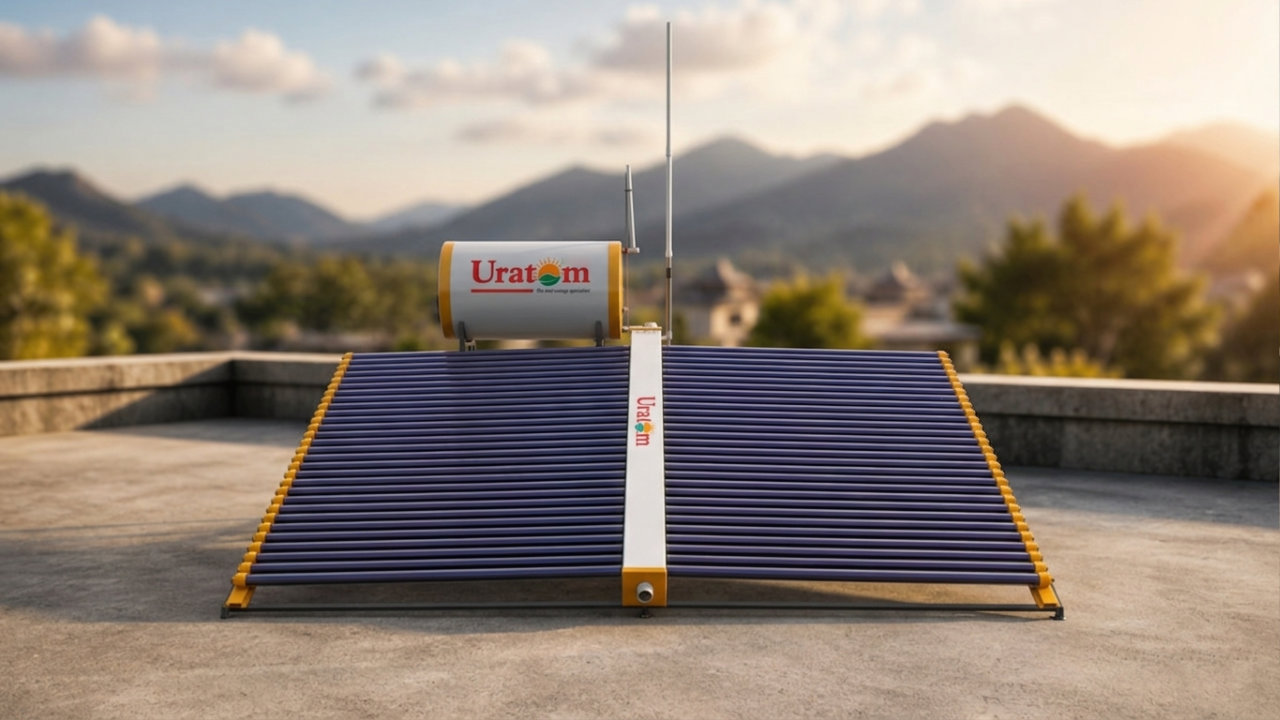

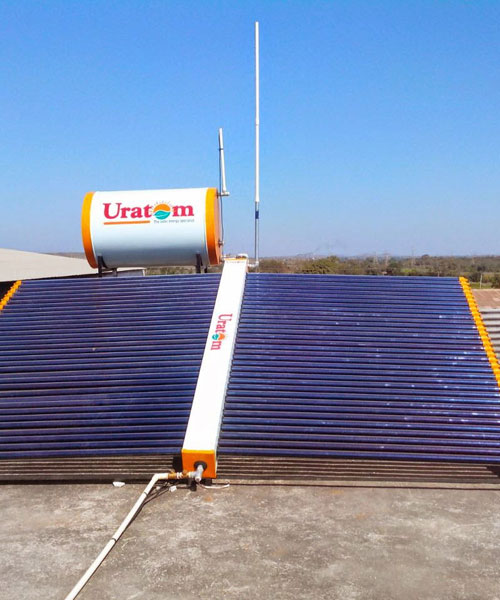

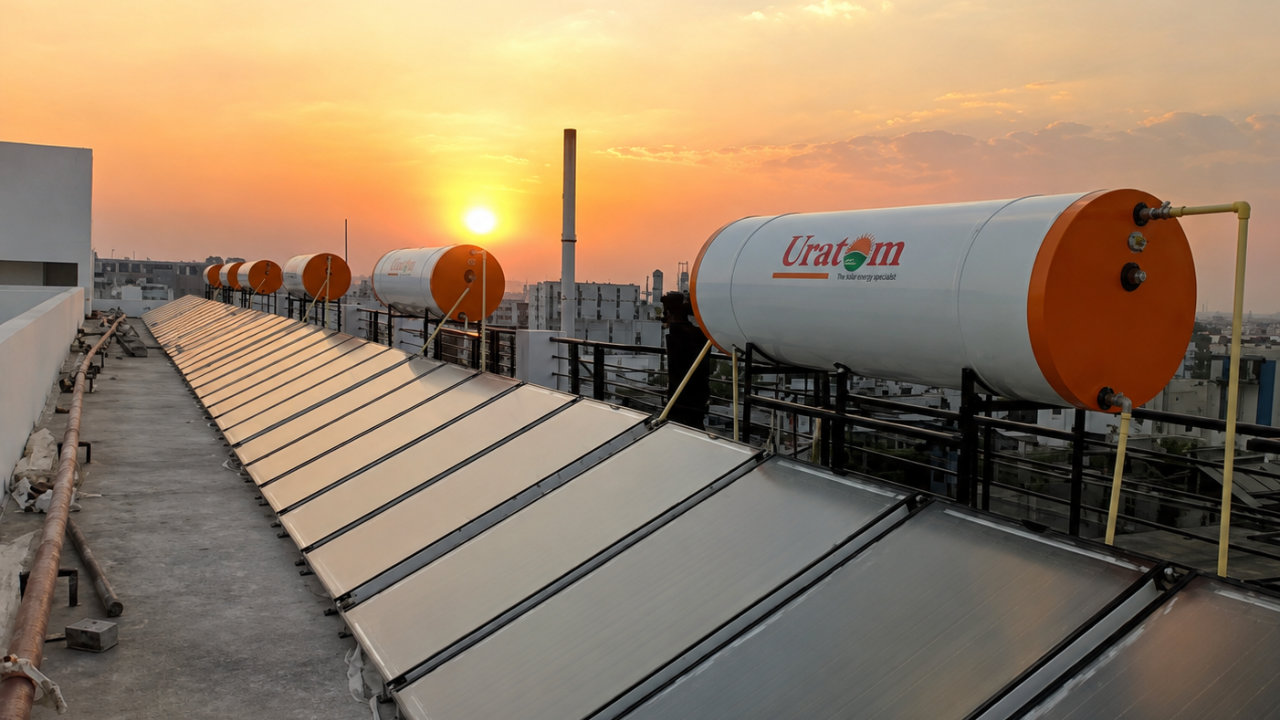

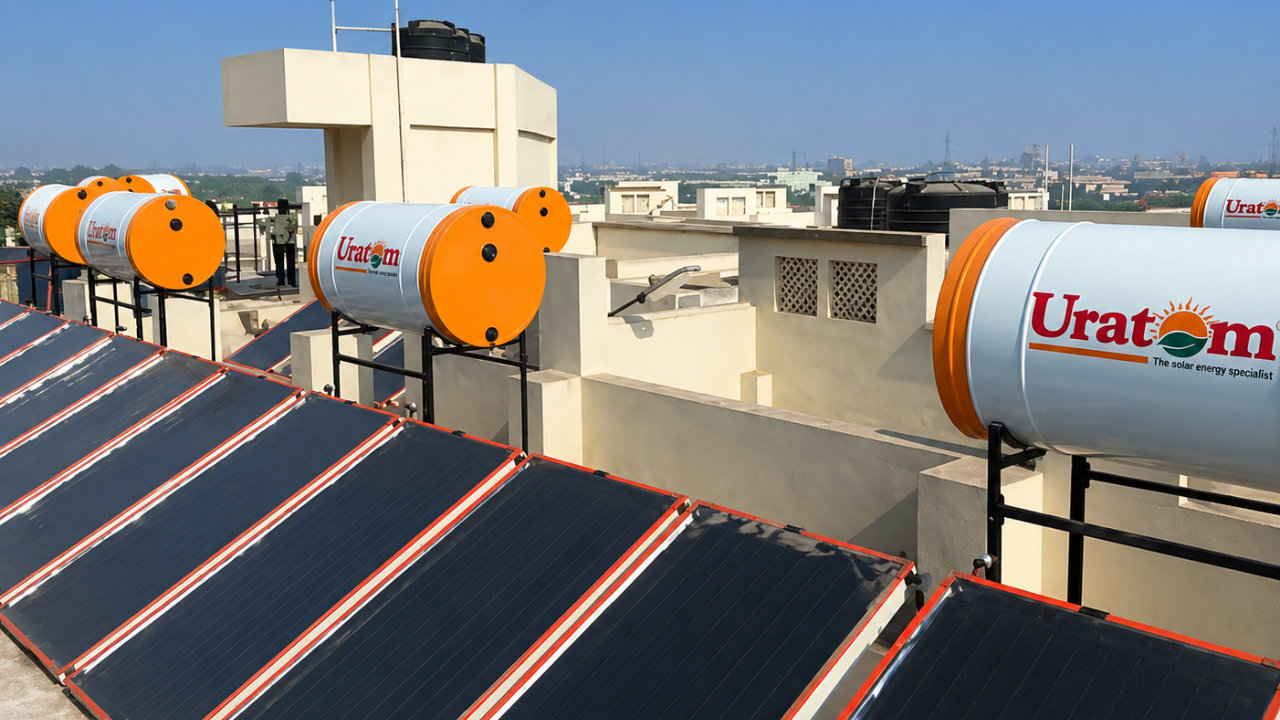

Goldstar’s industrial solar water heaters typically have a larger capacity than residential or commercial solar water heaters, with the ability to heat large volumes of water to high temperatures. They are also designed to withstand the demands of industrial use, with durable materials and components that can withstand harsh environments and heavy usage.
Our industrial solar water heaters include larger solar collectors, larger storage tanks, and more advanced control systems to manage the heating process. Goldstar’s industrial solar water heaters offer a practical and sustainable solution for meeting the hot water needs of various industries while reducing energy consumption and carbon emissions.
| Tube | |
|---|---|
| Material | 1.6 Borosilicate Glass 3.3 |
| Dimension | O.D. 58 mm |
| I.D. 47 mm | |
| Absorption Coating Graded | AL-N/CU/S (Copper Coated) |
| Absorptance | >92% (AM 1.5) |
| Emission | <8%(80 C) |
| Vacuum | p<5 X 10 PA |
| Stagnation Temperature | <200 C |
| Heat Loss | <0.8 W/59 M |
| Max. Strength | 0.8 mpa |
| Efficiency | 15% More than ordinary tubes |
| Tube Qty. | 60 |
| Tube Length | 2100 mm |
| Tank | |
| Outer Cover | G.I. 0.4 mm |
| PUF Insulation | High-Density PUF |
| Thickness of PUF | 50 mm |
| Inner Tank | G.I. for 500 lpd & MS for higher Capacity With Epoxy |
| Inner Tank Thickness | 2.5, 3, 4 & 6 mm for 500,1000, 2000 & 3000 lpd resp. |
| Coating | Pure Polyester Powder Coated |
| Manifold | |
| Outer Cover | G.I. 0.4 mm |
| PUF Insulation | High-Density PUF |
| Thickness of PUF | 50 mm |
| Inner Tank | G.I. With Epoxy Coating |
| Inner Tank Thickness | 2.5 mm |
| Coating | Pure Polyester Powder Coated |
| Stand | 30 x 30 x 3 mm with P. P. Powder coating |
| Stand | |
| 35 x 35 x 3 mm angle with P. P. Powder Coating | |
| Others | |
| Circulation Pump | 0.5 to 0.75 HP (Kirloskar/Silver) or/and Solenoid Valve |
| Temp. Sensor | Hot Water Controlling Sensor |
| Auto Control Panel | Water Level Controller, Dry Run Protection, Adjustable output temp., Auto ON / OFF electrical heater with timer. |
